DEMO: Perturbation Theory - Quantum Mechanics for Chemistry

1. Energy Levels¶

The unperturbed energy levels are given by:
$E_n^{(0)} = \frac{n^2 \pi^2 \hbar^2}{2 m L^2}, \quad n = 1, 2, 3, \dots$
(1)
The first-order correction to the energy is computed as:
$E_n^{(1)} = \langle \psi_n^{(0)} | V | \psi_n^{(0)} \rangle = \int_0^L \psi_n^{(0)}(x) V(x) \psi_n^{(0)}(x) \, dx$
(2)
The second-order correction to the energy accounts for interactions with other states:
$E_n^{(2)} = \sum_{m \neq n} \frac{|\langle \psi_m^{(0)} | V | \psi_n^{(0)} \rangle|^2}{E_n^{(0)} - E_m^{(0)}}$
(3)

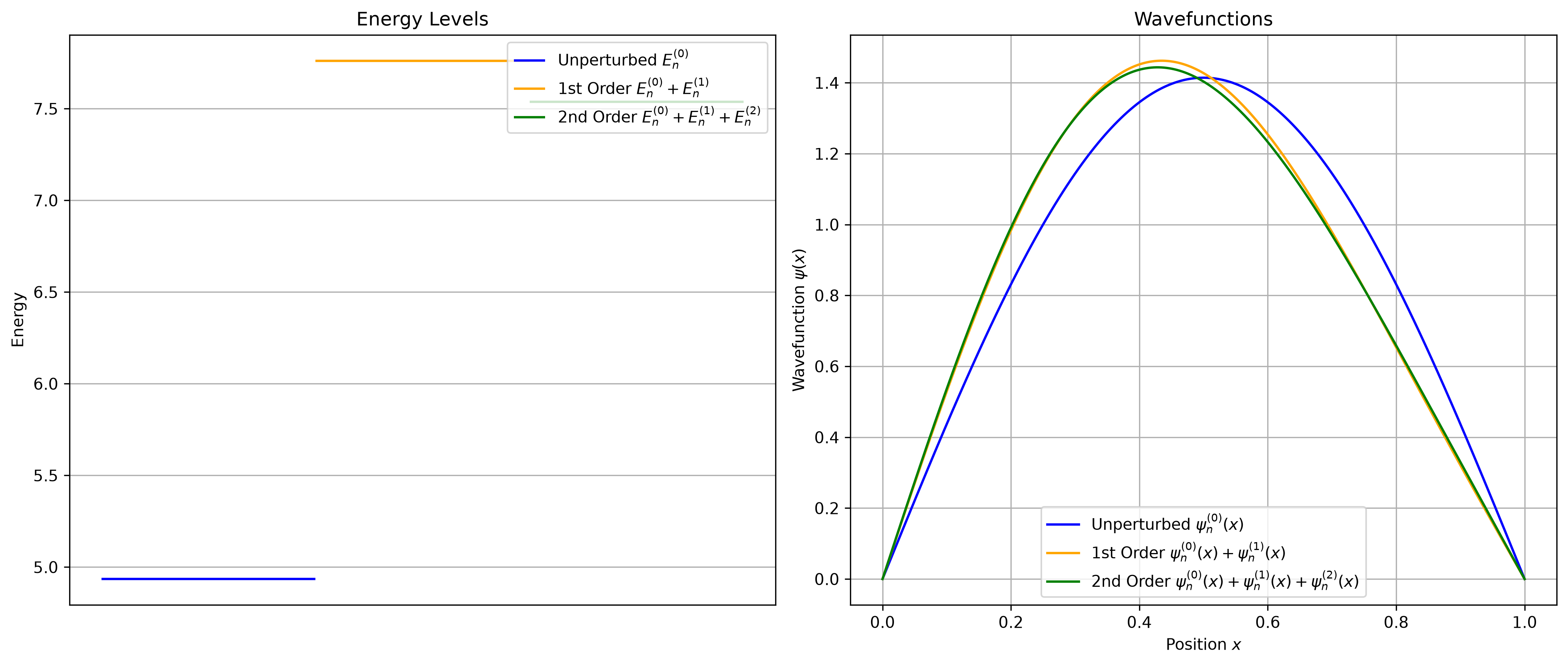

In the left panel, the energy levels are plotted for:
- $E_n^{(0)}$ : Unperturbed energy (blue line).
- $E_n^{(0)} + E_n^{(1)}$ : First-order corrected energy (orange line).
- $E_n^{(0)} + E_n^{(1)} + E_n^{(2)}$ : Second-order corrected energy (green line).

2. Wavefunctions¶

The unperturbed wavefunction for state $n$ is:
$\psi_n^{(0)}(x) = \sqrt{\frac{2}{L}} \sin\left(\frac{n \pi x}{L}\right)$
(4)
The first-order correction adds contributions from other states:
$\psi_n^{(1)}(x) = \sum_{m \neq n} \frac{\langle \psi_m^{(0)} | V | \psi_n^{(0)} \rangle}{E_n^{(0)} - E_m^{(0)}} \psi_m^{(0)}(x)$
(5)
The second-order correction further refines the wavefunction by including higher-order terms:
$\psi_n^{(2)}(x) = \sum_{m \neq n} \sum_{k \neq m} \frac{\langle \psi_k^{(0)} | V | \psi_m^{(0)} \rangle \langle \psi_m^{(0)} | V | \psi_n^{(0)} \rangle}{(E_n^{(0)} - E_m^{(0)})(E_m^{(0)} - E_k^{(0)})} \psi_k^{(0)}(x)$
(6)
In the right panel, the wavefunctions are plotted for:
- $\psi_n^{(0)}(x)$ : Unperturbed wavefunction (blue line).
- $\psi_n^{(0)}(x) + \psi_n^{(1)}(x)$ : First-order corrected wavefunction (orange line).
- $\psi_n^{(0)}(x) + \psi_n^{(1)}(x) + \psi_n^{(2)}(x)$ : Second-order corrected wavefunction (green line).

Parameters to vary¶

Magnitude of the Perturbation ( $a$ ):
- Increasing $a$ increases the influence of the perturbing potential, making corrections to the energy levels and wavefunctions more pronounced.
Quantum Number ( $n$ ):
- Higher $n$ states exhibit larger deviations due to their higher energy levels and larger overlaps with the perturbing potential.

Define the problem¶

# Constants
L = 1  # Length of the box
hbar = 1  # Reduced Planck's constant
m = 1  # Mass of the particle
max_states = 10  # Number of states to include in corrections

# Unperturbed energy levels
def E_n_0(n):
    return (n**2 * np.pi**2 * hbar**2) / (2 * m * L**2)

# Unperturbed wavefunction
def psi_n(x, n):
    return np.sqrt(2 / L) * np.sin(n * np.pi * x / L)

# Perturbing potential: Quadratic potential
def V(x, a):
    return a * x**2

# Matrix element <psi_m | V | psi_n>
def V_mn(m, n, a):
    def integrand(x):
        return psi_n(x, m) * V(x, a) * psi_n(x, n)
    result, _ = quad(integrand, 0, L)
    return result

First-order correction¶

# First-order correction to energy
def first_order_correction(n, a):
    return V_mn(n, n, a)

def psi_1_correction(x, n, a):
    correction = np.zeros_like(x)
    E_n0 = E_n_0(n)
    for m in range(1, max_states + 1):  # Sum over excited states
        if m == n:
            continue
        E_m0 = E_n_0(m)
        coeff = V_mn(m, n, a) / (E_n0 - E_m0)
        correction += coeff * psi_n(x, m)
    return correction

Second-order correction¶

def second_order_correction(n, a):
    correction = 0
    E_n0 = E_n_0(n)
    for m in range(1, max_states + 1):
        if m == n:
            continue
        V_mn_value = V_mn(m, n, a)
        correction += (abs(V_mn_value)**2) / (E_n0 - E_n_0(m))
    return correction

def psi_2_correction(x, n, a):
    correction = np.zeros_like(x)
    E_n0 = E_n_0(n)
    for m in range(1, max_states + 1):  # Loop over intermediate states
        if m == n:
            continue
        E_m0 = E_n_0(m)
        coeff_mn = V_mn(m, n, a) / (E_n0 - E_m0)
        for k in range(1, max_states + 1):  # Loop over final states
            if k == m:
                continue
            E_k0 = E_n_0(k)
            coeff_mk = V_mn(k, m, a) / (E_m0 - E_k0)
            correction += coeff_mn * coeff_mk * psi_n(x, k)
    return correction

Visualizing corrections¶

# Interactive plot function
def plot_energy_and_wavefunctions(a=1, n=1):
    x = np.linspace(0, L, 1000)  # Position grid
    psi_0 = psi_n(x, n)  # Unperturbed wavefunction
    psi_1 = psi_1_correction(x, n, a)  # First-order correction
    psi_2 = psi_2_correction(x, n, a)  # Second-order correction
    psi_total = psi_0 + psi_1 + psi_2  # Total wavefunction

    # Normalize corrected wavefunction
    psi_total /= np.sqrt(np.trapezoid(psi_total**2, x))

    # Energy levels
    E0 = E_n_0(n)
    E1 = first_order_correction(n, a)
    E2 = second_order_correction(n, a)

    # Plot
    fig, axes = plt.subplots(1, 2, figsize=(14, 6))

    # Left panel: Energy levels
    axes[0].hlines(E0, 0.5, 1.5, color='blue', label='Unperturbed $E_n^{(0)}$')
    axes[0].hlines(E0 + E1, 1.5, 2.5, color='orange', label='1st Order $E_n^{(0)} + E_n^{(1)}$')
    axes[0].hlines(E0 + E1 + E2, 2.5, 3.5, color='green', label='2nd Order $E_n^{(0)} + E_n^{(1)} + E_n^{(2)}$')
    axes[0].set_title('Energy Levels')
    axes[0].set_xticks([])
    axes[0].set_ylabel('Energy')
    axes[0].legend()
    axes[0].grid(True)

    # Right panel: Wavefunctions
    axes[1].plot(x, psi_0, label=r'Unperturbed $\psi_n^{(0)}(x)$', color='blue')
    axes[1].plot(x, psi_0 + psi_1, label=r'1st Order $\psi_n^{(0)}(x) + \psi_n^{(1)}(x)$', color='orange')
    axes[1].plot(x, psi_total, label=r'2nd Order $\psi_n^{(0)}(x) + \psi_n^{(1)}(x) + \psi_n^{(2)}(x)$', color='green')
    axes[1].set_title('Wavefunctions')
    axes[1].set_xlabel('Position $x$')
    axes[1].set_ylabel(r'Wavefunction $\psi(x)$')
    axes[1].legend()
    axes[1].grid(True)

    plt.tight_layout()
    plt.show()

a_p1 = 10   # perturbation strength a; try anything from 0 to 25
n_p1 = 1    # state n; try 1 through 5

Insights into Molecular Orbtials and Bonding from pertrubation theory perspective¶

def molecular_orbital_energies(E_A, E_B, H_AB):
    """
    Compute molecular orbital energies using perturbation theory.
    """
    E_avg = (E_A + E_B) / 2
    delta_E = (E_A - E_B) / 2
    E_plus = E_avg + np.sqrt(delta_E**2 + H_AB**2)  # Antibonding
    E_minus = E_avg - np.sqrt(delta_E**2 + H_AB**2)  # Bonding
    return E_minus, E_plus

# Parameters
E_A_vals = np.linspace(-5, 0, 100)  # Atomic orbital energy of A (e.g., 1s)
E_B = -4  # Fixed atomic orbital energy of B (e.g., 2s)
H_AB = 0.5  # Interaction strength

# Compute MO energies
bonding, antibonding = [], []
for E_A in E_A_vals:
    E_minus, E_plus = molecular_orbital_energies(E_A, E_B, H_AB)
    bonding.append(E_minus)
    antibonding.append(E_plus)

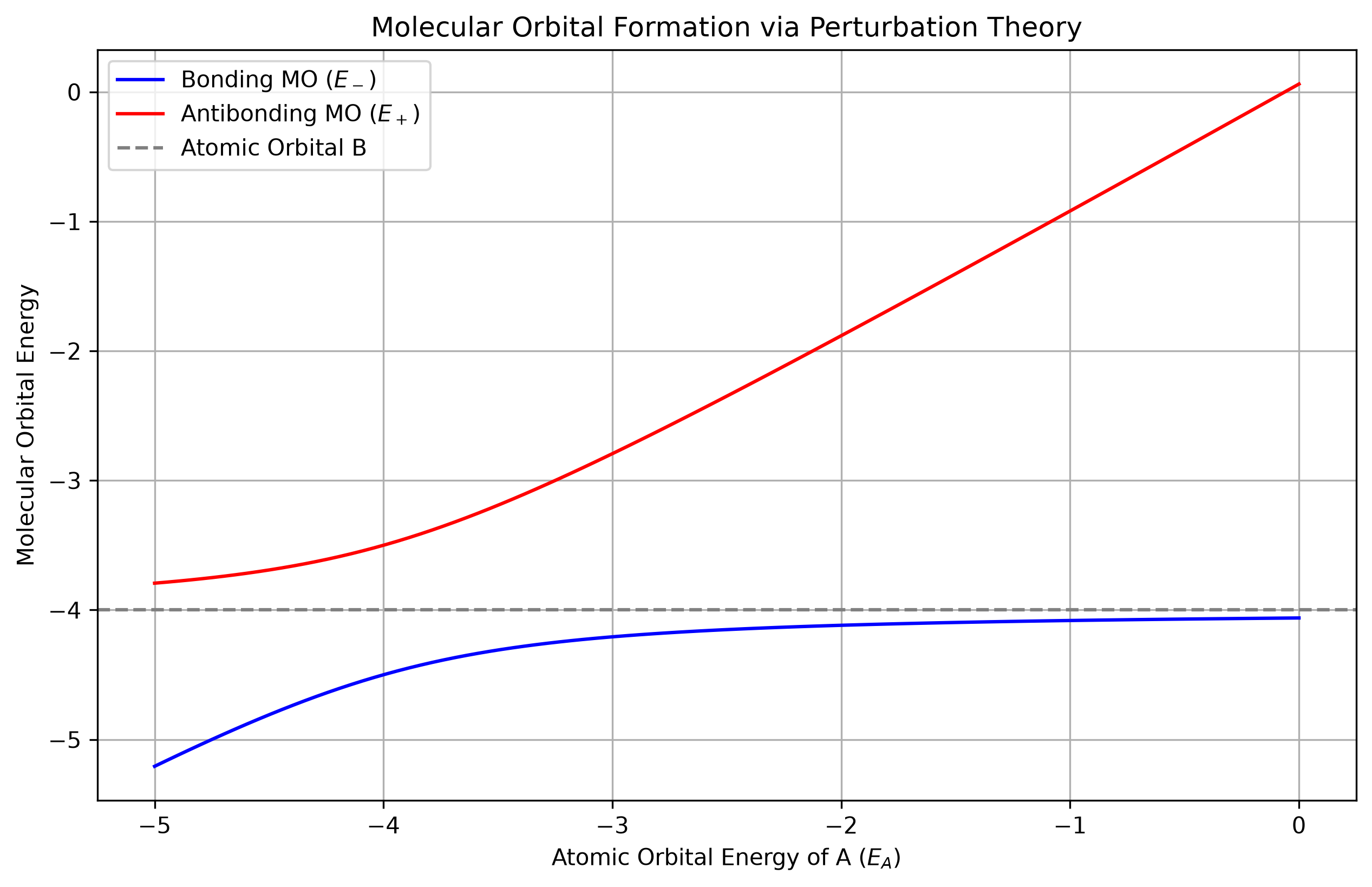

# Plot results
plt.figure(figsize=(10, 6))
plt.plot(E_A_vals, bonding, label='Bonding MO ($E_-$)', color='blue')
plt.plot(E_A_vals, antibonding, label='Antibonding MO ($E_+$)', color='red')
plt.axhline(E_B, color='gray', linestyle='--', label='Atomic Orbital B')
plt.xlabel('Atomic Orbital Energy of A ($E_A$)')
plt.ylabel('Molecular Orbital Energy')
plt.title('Molecular Orbital Formation via Perturbation Theory')
plt.legend()
plt.grid(True)
plt.show()

Roles of Bonding and Antibonding:

Bonding energy $E_-$ : Stabilized by $-|H_{AB}|^2 / \Delta E$ .
Antibonding energy $E_+$ : Destabilized by $+|H_{AB}|^2 / \Delta E$ .

def molecular_orbital_energies(E_A, E_B, H_AB):
    """
    Compute molecular orbital energies using second-order perturbation theory.
    """
    if E_A == E_B:
        E_A += 1e-6  # Avoid division by zero

    delta_E = E_A - E_B  # Energy spacing
    bonding = E_A - (H_AB**2 / delta_E)  # Bonding MO
    antibonding = E_B + (H_AB**2 / delta_E)  # Antibonding MO

    return bonding, antibonding

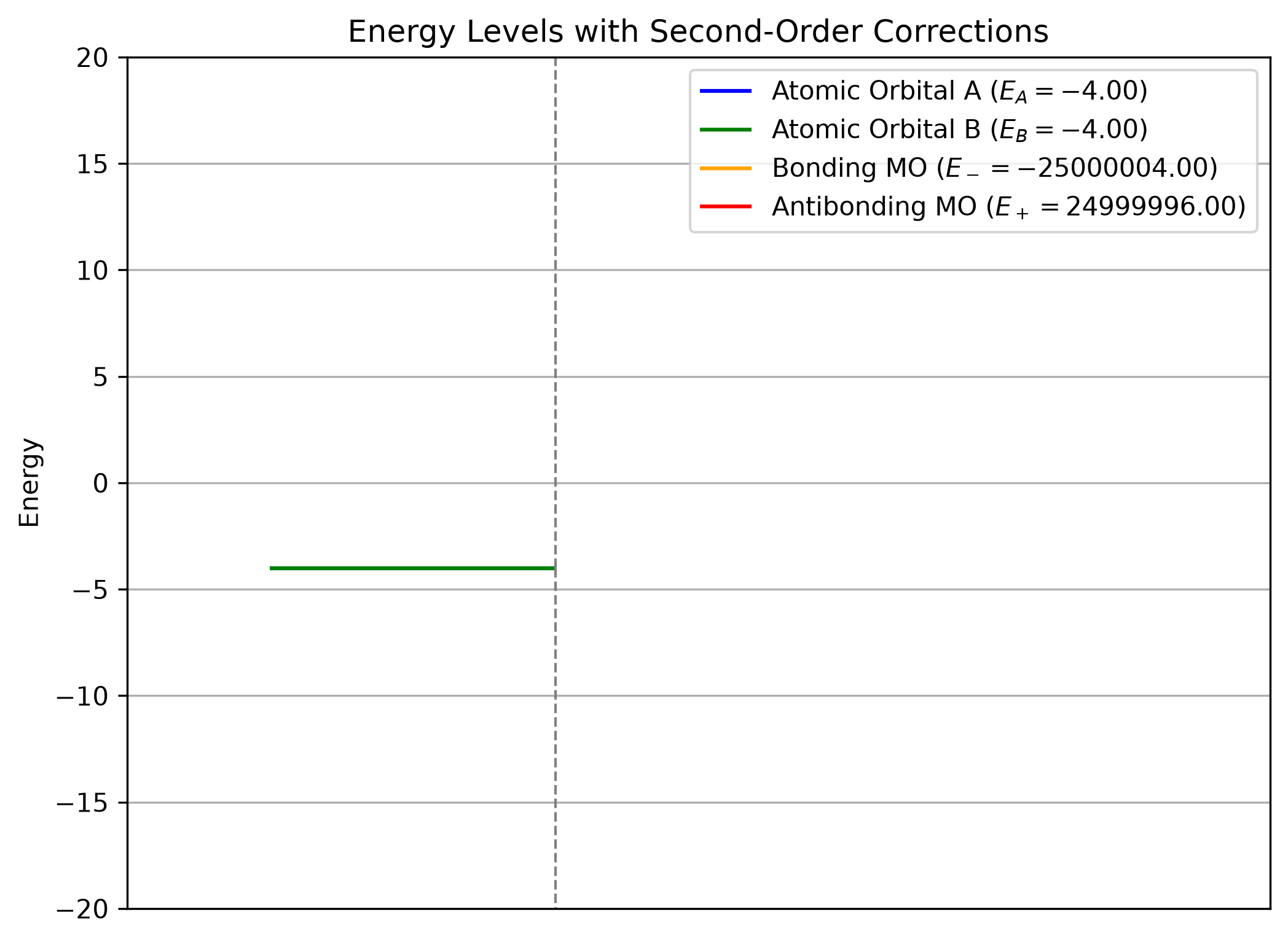

def plot_energy_levels(delta_E=2.0, H_AB=0.5):
    """
    Visualize energy levels of atomic and molecular orbitals with second-order corrections.
    """
    # Atomic orbital energies
    E_B = -4.0  # Fixed AO energy of B
    E_A = E_B + delta_E  # Varying AO energy of A

    # Molecular orbital energies
    E_minus, E_plus = molecular_orbital_energies(E_A, E_B, H_AB)

    # Plot energy levels
    fig, ax = plt.subplots(figsize=(8, 6))

    # Atomic orbital levels
    ax.hlines(E_A, 0.2, 0.4, color='blue', label=f'Atomic Orbital A ($E_A = {E_A:.2f}$)')
    ax.hlines(E_B, 0.2, 0.4, color='green', label=f'Atomic Orbital B ($E_B = {E_B:.2f}$)')

    # Molecular orbital levels
    ax.hlines(E_minus, 0.6, 0.8, color='orange', label=f'Bonding MO ($E_- = {E_minus:.2f}$)')
    ax.hlines(E_plus, 0.6, 0.8, color='red', label=f'Antibonding MO ($E_+ = {E_plus:.2f}$)')

    # Connect atomic and molecular orbitals
    ax.plot([0.4, 0.6], [E_A, E_plus], color='gray', linestyle='--', linewidth=1)
    ax.plot([0.4, 0.6], [E_B, E_minus], color='gray', linestyle='--', linewidth=1)

    # Axis settings
    ax.set_xlim(0.1, 0.9)
    ax.set_ylim(-20, 20)
    ax.set_ylabel('Energy')
    ax.set_xticks([])
    ax.set_title('Energy Levels with Second-Order Corrections')
    ax.legend()
    ax.grid(True)
    plt.show()

dE_p2 = 0.0   # energy gap ΔE = E_A - E_B; try anything from -5.0 to 5.0
