Change of variables with automatic differentiation (autodiff)

In this notebook we aim to predict the distribution of $\(q = \frac{1}{x}\)\( when \)\(x \sim \mathcal{N}(\mu, \sigma)\)$ with automatic differentiation. This is a follow-up to the previous notebook How do distributions transform under a change of variables ?, which relied on traditional transformation methods without automatic differentiation…

# Import necessary libraries
import numpy as np
import scipy.stats as scs
import matplotlib.pyplot as plt

# Define normal distribution parameters
mean, std, N = 1.0, 0.3, 10000  # Mean, standard deviation, and number of samples

# Generate random samples from a normal distribution
x = np.random.normal(mean, std, N)

x_plot = np.linspace(0.1,3,100)

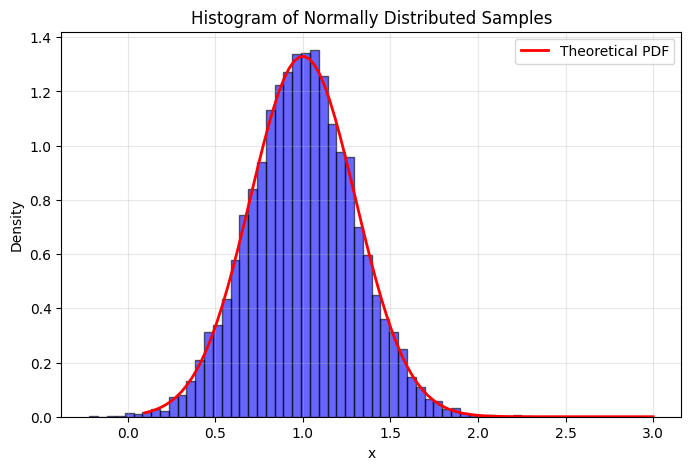

# Plot histogram of sampled data
plt.figure(figsize=(8, 5))
plt.hist(x, bins=50, density=True, alpha=0.6, color='blue', edgecolor='black')

# Overlay the theoretical normal distribution
x_plot = np.linspace(0.1, 3, 100)
plt.plot(x_plot, scs.norm.pdf(x_plot, mean, std), 'r-', linewidth=2, label='Theoretical PDF')

# Formatting the plot
plt.xlabel('x')
plt.ylabel('Density')
plt.title('Histogram of Normally Distributed Samples')
plt.legend()
plt.grid(alpha=0.3)
plt.show()

def q(x):
    return 1/x

q_ = q(x)
q_plot = q(x_plot)

# Plot histogram of sampled data
plt.figure(figsize=(8, 5))
plt.hist(x, bins=50, density=True, alpha=0.6, color='blue', edgecolor='black')

# Overlay the theoretical normal distribution
x_plot = np.linspace(0.1, 3, 100)
plt.plot(x_plot, scs.norm.pdf(x_plot, mean, std), 'r-', linewidth=2, label='Theoretical PDF')

# Formatting the plot
plt.xlabel('x')
plt.ylabel('Density')
plt.title('Histogram of Normally Distributed Samples')
plt.legend()
plt.grid(alpha=0.3)
plt.show()

# Plot histogram of sampled data
plt.figure(figsize=(8, 5))
plt.hist(x, bins=50, density=True, alpha=0.6, color='blue', edgecolor='black')

# Overlay the theoretical normal distribution
x_plot = np.linspace(0.1, 3, 100)
plt.plot(x_plot, scs.norm.pdf(x_plot, mean, std), 'r-', linewidth=2, label='Theoretical PDF')

# Formatting the plot
plt.xlabel('x')
plt.ylabel('Density')
plt.title('Histogram of Normally Distributed Samples')
plt.legend()
plt.grid(alpha=0.3)
plt.show()

Do it by hand

We want to evaluate \(p_q(q) = \frac{p_x(x(q))}{ | dq/dx |} \), which requires knowing the deriviative and how to invert from \(q \to x\). The inversion is easy, it’s just \(x(q)=1/q\). The derivative is \(dq/dx = \frac{-1}{x^2}\), which in terms of \(q\) is \(dq/dx = q^2\).

# Plot histogram of sampled data
plt.figure(figsize=(8, 5))
plt.hist(x, bins=50, density=True, alpha=0.6, color='blue', edgecolor='black')

# Overlay the theoretical normal distribution
x_plot = np.linspace(0.1, 3, 100)
plt.plot(x_plot, scs.norm.pdf(x_plot, mean, std), 'r-', linewidth=2, label='Theoretical PDF')

# Formatting the plot
plt.xlabel('x')
plt.ylabel('Density')
plt.title('Histogram of Normally Distributed Samples')
plt.legend()
plt.grid(alpha=0.3)
plt.show()

Alternatively, we don’t need to know how to invert \(x(q)\). Instead, we can start with x_plot and use the evaluated pairs (x_plot, q_plot=q(x_plot)). Then we can just use x_plot when we want \(x(q)\).

Here is a plot of the inverse mad ethat way.

plt.plot(q_plot, x_plot, c='r', lw=2, label='inverse x(q)')
plt.xlim((0,3))
plt.xlabel('q')
plt.ylabel('x(q)')
plt.legend()

<matplotlib.legend.Legend at 0x7f4e90929430>

and here is a plot of our prediction using x_plot directly

# Plot histogram of sampled data
plt.figure(figsize=(8, 5))
plt.hist(x, bins=50, density=True, alpha=0.6, color='blue', edgecolor='black')

# Overlay the theoretical normal distribution
x_plot = np.linspace(0.1, 3, 100)
plt.plot(x_plot, scs.norm.pdf(x_plot, mean, std), 'r-', linewidth=2, label='Theoretical PDF')

# Formatting the plot
plt.xlabel('x')
plt.ylabel('Density')
plt.title('Histogram of Normally Distributed Samples')
plt.legend()
plt.grid(alpha=0.3)
plt.show()

With Jax Autodiff for the derivatives

Now let’s do the same thing using Jax to calculate the derivatives. We will make a new function dq by applying the grad function of Jax to our own function q (eg. dq = grad(q)).

from jax import grad, vmap
import jax.numpy as np

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[12], line 1
----> 1 from jax import grad, vmap
      2 import jax.numpy as np

ModuleNotFoundError: No module named 'jax'

#define the gradient with grad(q)
dq = grad(q)  #dq is a new python function
print(dq(.5)) # should be -4

-4.0

/Users/cranmer/anaconda3/envs/stat-ds-book/lib/python3.8/site-packages/jax/lib/xla_bridge.py:130: UserWarning: No GPU/TPU found, falling back to CPU.
  warnings.warn('No GPU/TPU found, falling back to CPU.')

# dq(x) #broadcasting won't work. Gives error:
# Gradient only defined for scalar-output functions. Output had shape: (10000,).

#define the gradient with grad(q) that works with broadcasting
dq = vmap(grad(q))

#print dq/dx for x=0.5, 1, 2
# it should be -1/x^2 =. -4, 1, -0.25

dq( np.array([.5, 1, 2.]))

DeviceArray([-4.  , -1.  , -0.25], dtype=float32)

#plot gradient
plt.plot(x_plot, -np.power(x_plot,-2), c='black', lw=2, label='-1/x^2')
plt.plot(x_plot, dq(x_plot), c='r', lw=2, ls='dashed', label='dq/dx from jax')
plt.xlabel('x')
plt.ylabel('dq/dx')
plt.legend()

<matplotlib.legend.Legend at 0x7ff690d4ef10>

We want to evaluate \(p_q(q) = \frac{p_x(x(q))}{ | dq/dx |} \), which requires knowing how to invert from \(q \to x\). That’s easy, it’s just \(x(q)=1/q\). But we also have evaluated pairs (x_plot, q_plot), so we can just use x_plot when we want \(x(q)\)

Put it all together.

Again we can either invert x(q) by hand and use Jax for derivative:

# Plot histogram of sampled data
plt.figure(figsize=(8, 5))
plt.hist(x, bins=50, density=True, alpha=0.6, color='blue', edgecolor='black')

# Overlay the theoretical normal distribution
x_plot = np.linspace(0.1, 3, 100)
plt.plot(x_plot, scs.norm.pdf(x_plot, mean, std), 'r-', linewidth=2, label='Theoretical PDF')

# Formatting the plot
plt.xlabel('x')
plt.ylabel('Density')
plt.title('Histogram of Normally Distributed Samples')
plt.legend()
plt.grid(alpha=0.3)
plt.show()

<matplotlib.legend.Legend at 0x7ff65906a460>

or we can use the pairs x_plot, q_plot

# Plot histogram of sampled data
plt.figure(figsize=(8, 5))
plt.hist(x, bins=50, density=True, alpha=0.6, color='blue', edgecolor='black')

# Overlay the theoretical normal distribution
x_plot = np.linspace(0.1, 3, 100)
plt.plot(x_plot, scs.norm.pdf(x_plot, mean, std), 'r-', linewidth=2, label='Theoretical PDF')

# Formatting the plot
plt.xlabel('x')
plt.ylabel('Density')
plt.title('Histogram of Normally Distributed Samples')
plt.legend()
plt.grid(alpha=0.3)
plt.show()

<matplotlib.legend.Legend at 0x7ff6707ea0a0>
